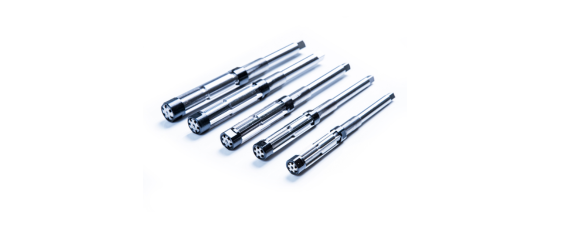

Adjustable Reamer Series

Features

The Adjustable Hand Reamer is designed to fulfill the requirements of a section of the Engineering Industry which has need of a versatile tool capable of reaming a small number of odd size holes. The Reamer being simple in design and free from complications is easily adjusted to any diameter within the limits of the expansion range and by use of a set of Reamers holes of any size and tolerance from 15/64" to 3-11/32" or 5,95mm to 85mm can be obtained.
Adjustment is a simple operation carried out by the loosening of one nut while tightening the other, thus allowing the blades to progress along the taper bottomed slots resulting in an increase or decrease in the Reamer diameter according to the direction of adjustment.
All around type corresponding to the work that is wide from cast iron to steel and SUS, Aluminum and Copper Alloys.
★This product is only suitable for ｢through hole｣ processing.

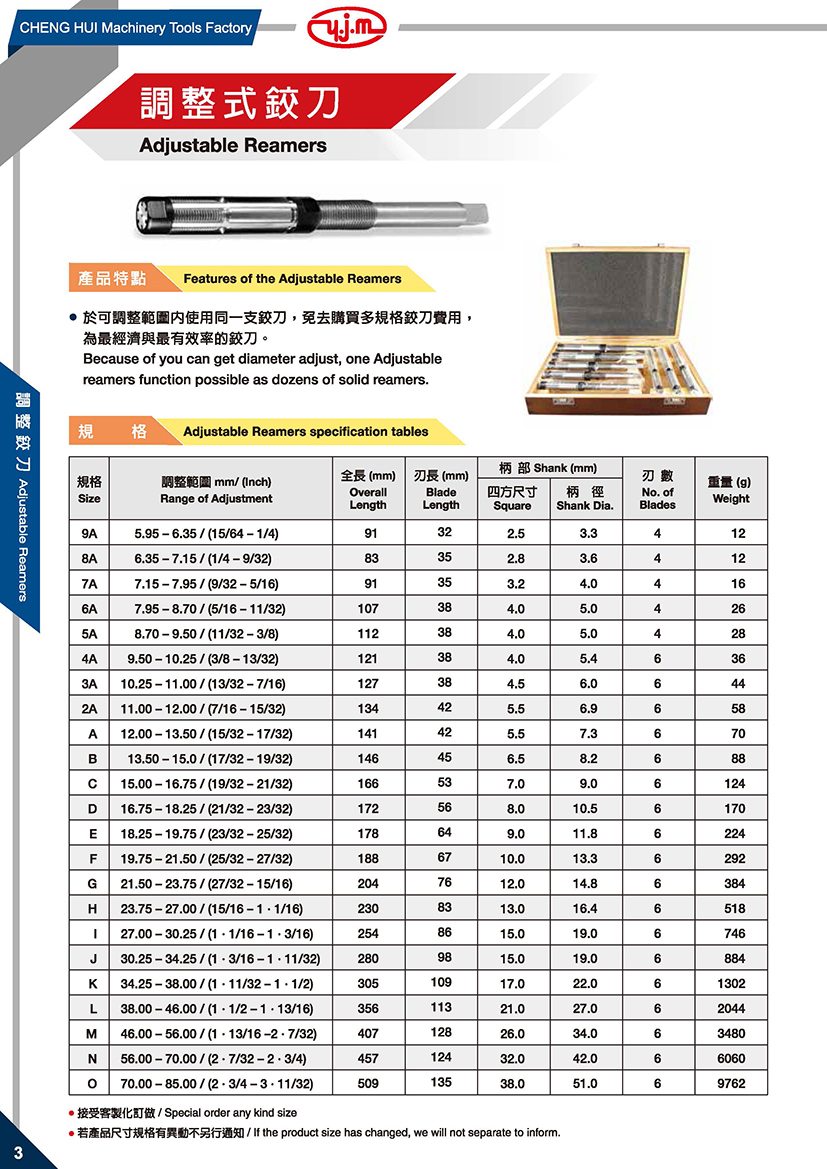

Specifications

(m/m)

Size	Range of Adjustment (mm) / (Inch)	Overall Length	Blade Length	Shank / Square	Shank / Diameter	No. of Blades	Weight (g)
AR 9A	5.95 – 6.35 / (15/64 – 1/4)	91	32	2.5	3.3	4	12
AR 8A	6.35 – 7.15 / (1/4 – 9/32)	83	35	2.8	3.6	4	12
AR 7A	7.15 – 7.95 / (9/32 – 5/16 )	91	35	3.2	4.0	4	16
AR 6A	7.95 – 8.70 / (5/16 – 11/32 )	107	38	4.0	5.0	4	26
AR 5A	8.70 – 9.50 / (11/32 – 3/8)	112	38	4.0	5.0	4	28
AR 4A	9.50 – 10.25 / (3/8 – 13/32)	121	38	4.0	5.4	6	36
AR 3A	10.25 – 11.00 / (13/32 – 7/16)	127	38	4.5	6.0	6	44
AR 2A	11.00 – 12.00 / (7/16 – 15/32)	134	42	5.5	6.9	6	58
AR A	12.00 – 13.50 / (15/32 – 17/32)	141	42	5.5	7.3	6	70
AR B	13.50 – 15.0 / (17/32 – 19/32)	146	45	6.5	8.2	6	88
AR C	15.00 – 16.75 / (19/32 – 21/32)	166	53	7.0	9.0	6	124
AR D	16.75 – 18.25 / (21/32 – 23/32)	172	56	8.0	10.5	6	170
AR E	18.25 – 19.75 / (23/32 – 25/32)	178	64	9.0	11.8	6	224
AR F	19.75 – 21.50 / (25/32 – 27/32)	188	67	10.0	13.3	6	292
AR G	21.50 – 23.75 / (27/32 – 15/16)	204	76	12.0	14.8	6	384
AR H	23.75 – 27.00 / (15/16 – 1 1/16)	230	83	13.0	16.4	6	518
AR I	27.00 – 30.25 / (1 1/16 – 1 3/16)	254	86	15.0	19.0	6	746
AR J	30.25 – 34.25 / (1 3/16 – 1 11/32)	280	98	15.0	19.0	6	884
AR K	34.25 – 38.00 / (1 11/32 – 1 1/2)	305	109	17.0	22.0	6	1302
AR L	38.00 – 46.00 / (1 1/2 – 1 13/16)	356	113	21.0	27.0	6	2044
AR M	46.00 – 56.00 / (1 13/16 –2 7/32)	407	128	26.0	34.0	6	3480
AR N	56.00 – 70.00 / (2 7/32 – 2 3/4)	457	124	32.0	42.0	6	6060
AR O	70.00 – 85.00 / (2 3/4 – 3 11/32)	509	135	38.0	51.0	6	9762
